Noise mismatch

What happens when the filter is told the wrong sensor noise.

Every calibrated result elsewhere in this site has the filter told the true noise of the sensors that made the data. That is the easiest case a Kalman filter can have, and a real filter never gets it. This page generates the data once with the true noise and filters it with the assumed GNSS and vision sigmas multiplied by a factor. A factor below 1 makes the filter trust the sensor more than it should; above 1, less. (Model contract, as-implemented finding 5.)

navkit sweep mismatch --csv docs/data/mismatch_sweep.csv \
    --figure docs/figures/mismatch-sweep.png --page docs/mismatch.md

Two cases, nine factors, five noise seeds each. gnss_only has GNSS and no outage; outage_control has the 15 s GNSS outage with vision off. The table below is generated from data/mismatch_sweep.csv and a test fails if they disagree. CI reruns the sweep and fails if the committed CSV no longer matches it.

Case Assumed noise x ATE rmse m [95% CI] NEES mean [95% CI] Coverage @2σ % [95% CI] Claimed 1σ m GNSS fixes rejected % [95% CI] Verdicts
gnss_only 0.25 45.28 [26.86, 63.02] 68.4 [46.1, 94.2] 10.8 [3.7, 18.0] 7.207 94.4 [92.1, 96.8] overconfident x5
gnss_only 0.5 9.37 [0.67, 18.49] 19.0 [15.0, 24.1] 31.1 [14.6, 46.1] 2.236 46.5 [21.7, 74.2] overconfident x5
gnss_only 0.7 0.57 [0.53, 0.61] 7.6 [6.0, 9.0] 80.4 [71.5, 89.5] 0.189 4.5 [4.0, 5.3] overconfident x5
gnss_only 0.8 0.53 [0.50, 0.58] 5.6 [4.5, 6.7] 92.4 [87.1, 96.9] 0.208 0.9 [0.7, 1.2] mixed(bulk xoverconfident, tail xunderconfident) x1, overconfident x4
gnss_only 0.9 0.52 [0.48, 0.56] 4.3 [3.4, 5.3] 99.1 [97.9, 100.0] 0.230 0.1 [0.0, 0.4] mixed(bulk xoverconfident, tail xunderconfident) x3, overconfident x2
gnss_only 1 0.51 [0.48, 0.56] 3.6 [2.8, 4.3] 100.0 [100.0, 100.0] 0.254 0.0 [0.0, 0.0] mixed(bulk xoverconfident, tail xunderconfident) x3, underconfident x2
gnss_only 1.25 0.51 [0.47, 0.55] 2.4 [1.8, 2.9] 100.0 [100.0, 100.0] 0.313 0.0 [0.0, 0.0] mixed(bulk xcalibrated, tail xunderconfident) x1, mixed(bulk xoverconfident, tail xunderconfident) x1, underconfident x3
gnss_only 2 0.50 [0.45, 0.55] 1.0 [0.8, 1.2] 100.0 [100.0, 100.0] 0.490 0.0 [0.0, 0.0] underconfident x5
gnss_only 4 0.55 [0.49, 0.61] 0.4 [0.3, 0.5] 100.0 [100.0, 100.0] 0.921 0.0 [0.0, 0.0] underconfident x5
outage_control 0.25 35.06 [15.33, 57.65] 45.0 [28.2, 65.4] 38.5 [14.4, 62.4] 6.880 87.4 [81.1, 93.7] overconfident x5
outage_control 0.5 21.18 [12.69, 32.04] 17.2 [11.7, 25.1] 33.0 [14.5, 53.8] 2.669 42.9 [20.0, 67.9] overconfident x5
outage_control 0.7 11.55 [6.80, 16.30] 7.0 [4.8, 8.8] 78.2 [61.0, 94.2] 0.420 3.7 [2.4, 5.3] overconfident x5
outage_control 0.8 11.34 [6.71, 15.96] 5.7 [3.8, 7.3] 96.5 [90.9, 99.6] 0.464 0.8 [0.0, 1.8] mixed(bulk xoverconfident, tail xunderconfident) x1, mixed(bulk xunderconfident, tail xcalibrated) x1, overconfident x3
outage_control 0.9 10.56 [6.22, 14.89] 4.4 [2.9, 5.6] 98.8 [96.4, 100.0] 0.512 0.0 [0.0, 0.0] mixed(bulk xoverconfident, tail xunderconfident) x3, overconfident x1, underconfident x1
outage_control 1 9.74 [5.67, 13.81] 3.5 [2.4, 4.5] 99.7 [99.1, 100.0] 0.567 0.0 [0.0, 0.0] mixed(bulk xoverconfident, tail xunderconfident) x3, overconfident x1, underconfident x1
outage_control 1.25 8.04 [4.55, 11.54] 2.1 [1.5, 2.9] 100.0 [100.0, 100.0] 0.703 0.0 [0.0, 0.0] mixed(bulk xoverconfident, tail xunderconfident) x1, underconfident x4
outage_control 2 5.06 [2.71, 8.09] 0.9 [0.6, 1.3] 100.0 [100.0, 100.0] 0.944 0.0 [0.0, 0.0] underconfident x5
outage_control 4 3.38 [2.42, 4.79] 0.5 [0.3, 0.6] 100.0 [100.0, 100.0] 1.713 0.0 [0.0, 0.0] underconfident x5

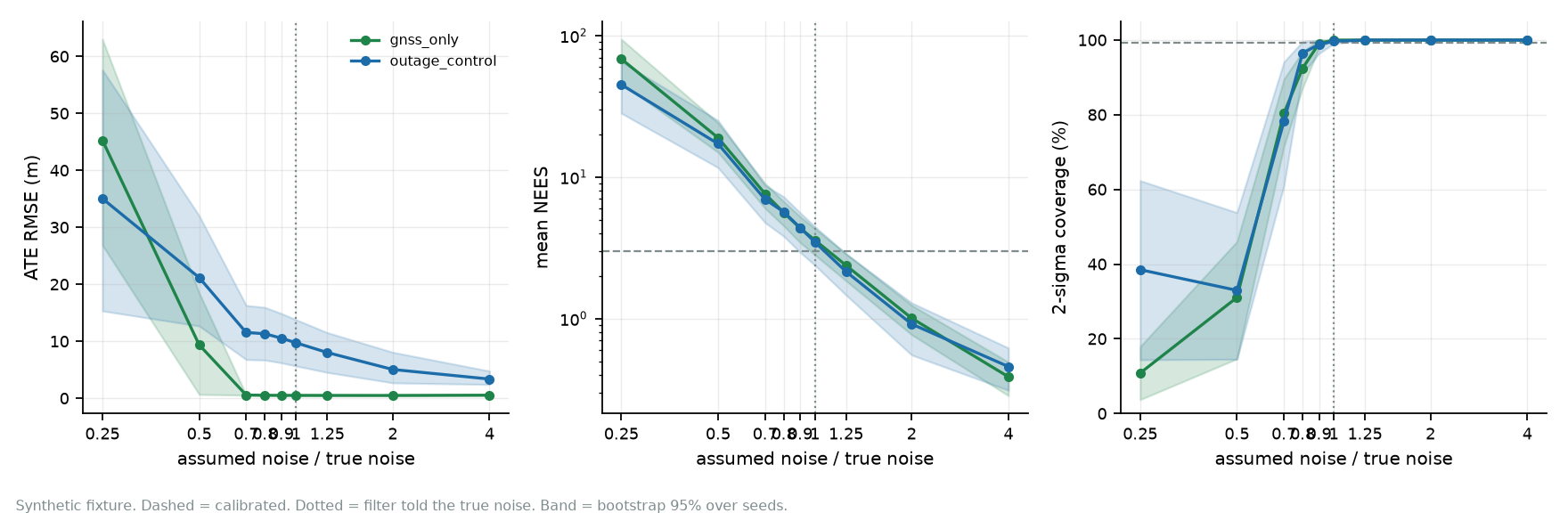

Mismatch sweep

What it shows

Each statement below is checked against the CSV by tests/test_mismatch_sweep.py.

  1. An optimistic noise model is not a graceful failure. With the assumed noise below the true noise, the chi-square gate starts rejecting healthy GNSS fixes (see the rejection column), the filter dead-reckons through the gap, and error grows. In gnss_only it grows by more than an order of magnitude at the strongest mismatch; in outage_control, which starts from a large error, it still more than doubles. The gate meant to protect the filter from bad data turns an optimistic noise model into data loss. I checked this mechanism on one run (seed 0, factor 0.5, gnss_only): 116 of 151 fixes were rejected and one fault was declared. That one run is an observation, not part of the table.
  2. Calibration is lost well before the gate does much damage. Mean 2σ coverage leaves a 90% band between factors 0.7 and 0.8 in both cases, while the rejection share is still in single digits. An underestimate of the sensor noise of between 20% and 30% is enough. The 90% band is my choice, not a derived threshold.
  3. A pessimistic noise model is benign for accuracy and honest about it. With the assumed noise above the true noise, the position error in gnss_only barely moves, the claimed uncertainty scales up with the assumption, coverage stays at 100% and the filter reads as underconfident. Looser, not wrong.
  4. With the true noise, the bulk test already reads slightly overconfident. At factor 1 the mean NEES is above 3 in both cases, although its interval includes 3, which matches the benchmark's mixed verdicts. By factor 1.25 the mean NEES is below 3.
  5. One result I did not expect and have not explained. In outage_control, position error falls as the assumed noise grows, and the intervals at factors 1 and 4 do not overlap. A plausible reason is that a larger assumed noise keeps the bias states from fitting GNSS noise before the outage, which would make dead reckoning through it better. That is a hypothesis; I did not test it.

What this does not show

  • One synthetic path, one noise model (white and Gaussian), and one factor applied to every axis and, with --channel both, to both sensors. Nothing here says how a real receiver's noise is mismatched.
  • Only the assumed GNSS and vision sigmas change. IMU noise, the outage window and the trajectory do not.
  • Both cases have the default IMU noise (ADR-0012). An earlier version of this sweep ran gnss_only with a noiseless IMU; it was rerun after that was fixed and the statements above still hold.
  • Five seeds per cell, so the intervals are rough. At factor 1 the per-seed verdicts are split between mixed, underconfident and overconfident; the verdict column shows the split rather than a single label.
  • It does not say what the right noise is, or how to estimate it. Adaptive noise estimation is not implemented.
